X30 Junior Engine

IAME X30 Junior Engine

The best selling X30 Junior is the most successful blend of innovation and tradition.

Offering modern features such as an electric starter, balancer shaft and water-cooling, while preserving traditional specifications that include the diaphragm carburetor and the absence of the power valve.

All the parts of the X30 engines are manufactured using the latest generation of CNC machines, this translates into extreme manufacturing accuracy of sensitive dimensions. IAME high quality standards guarantee the zeroing of any performance difference among engines with absolute certainty of competing on the track on equal terms.

The result: an engine that is fun to drive, easy to use and long lasting. Pure karting!

X30 Junior Gallery

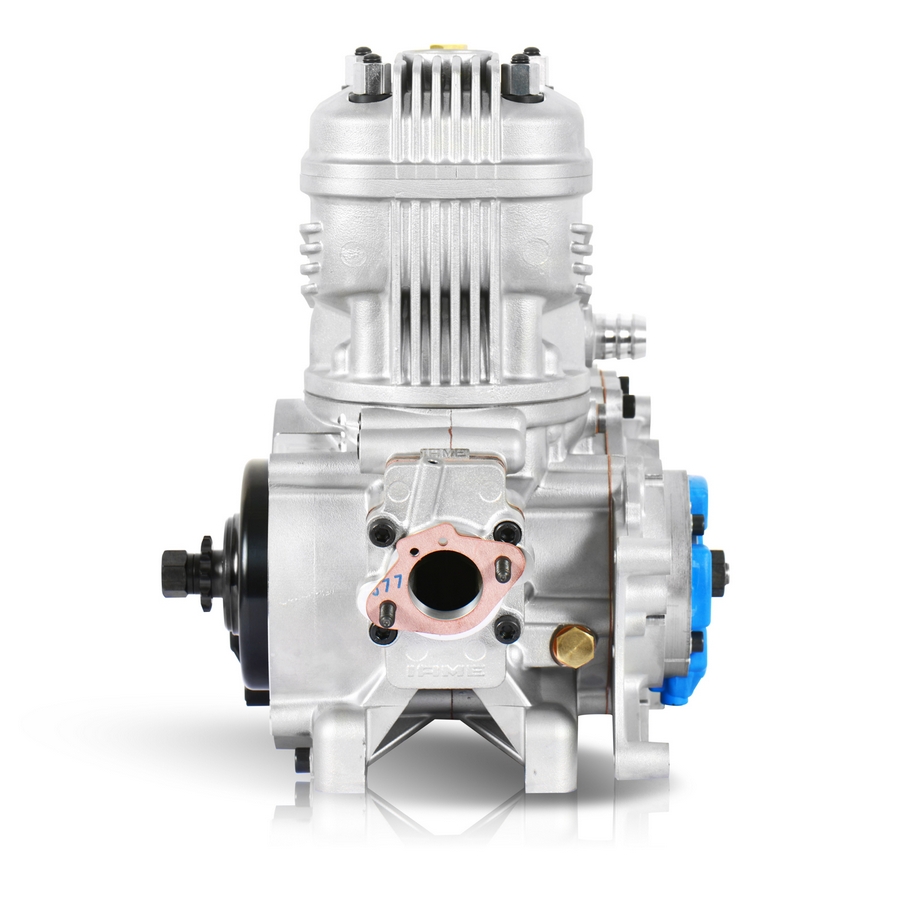

IAME X30 Junior Kart Engine 004

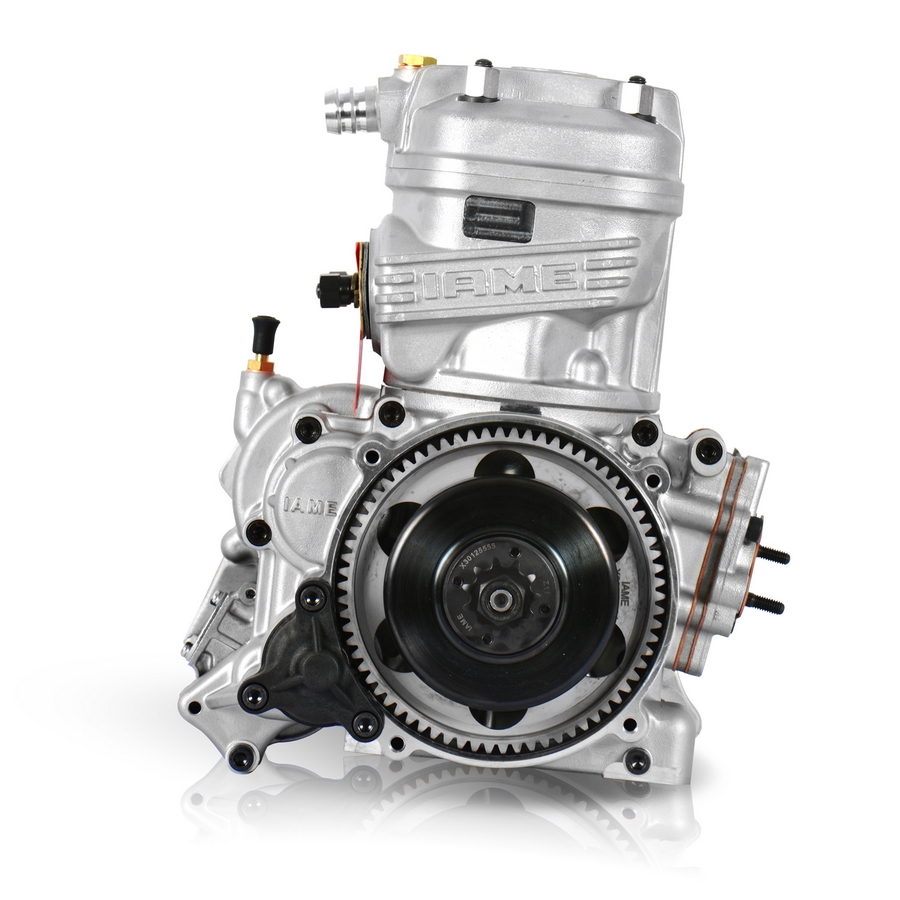

IAME X30 Junior Kart Engine 005

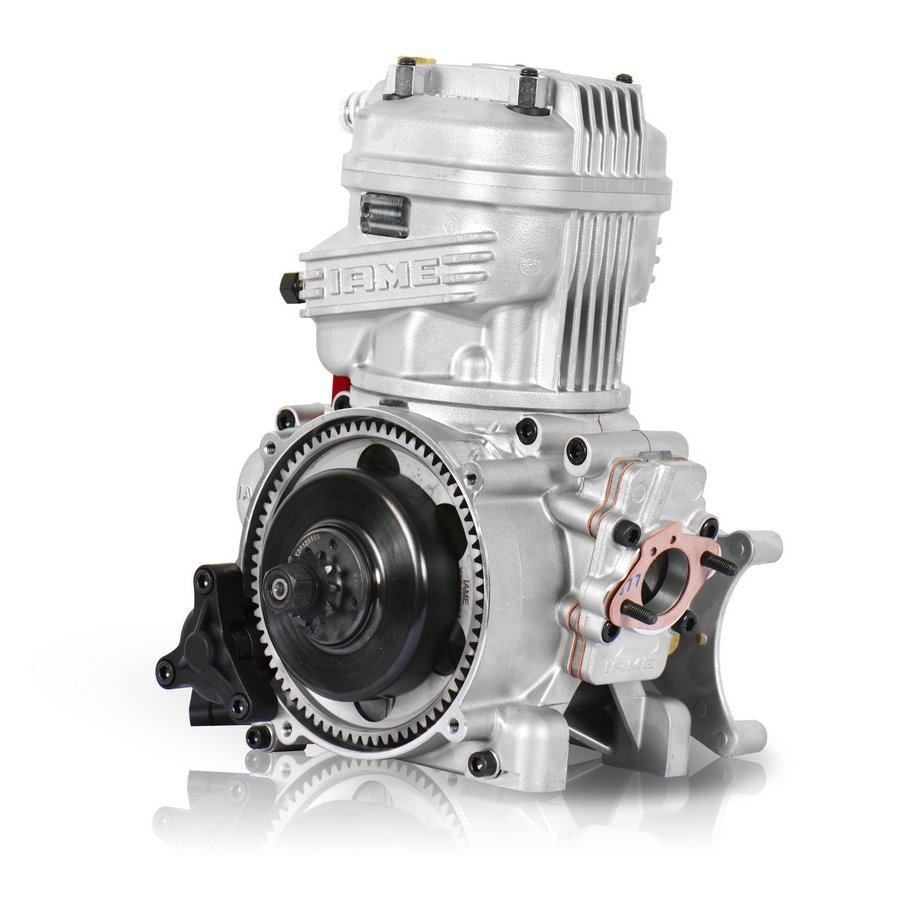

IAME X30 Junior Kart Engine 006

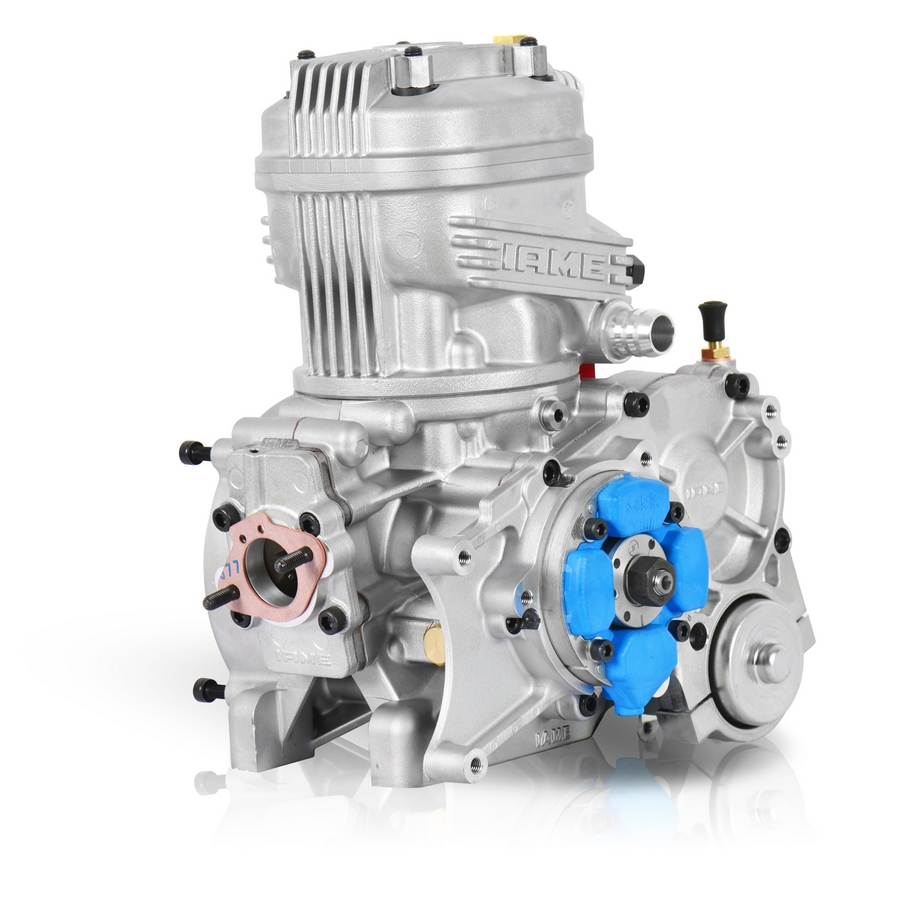

IAME X30 Junior Kart Engine 007

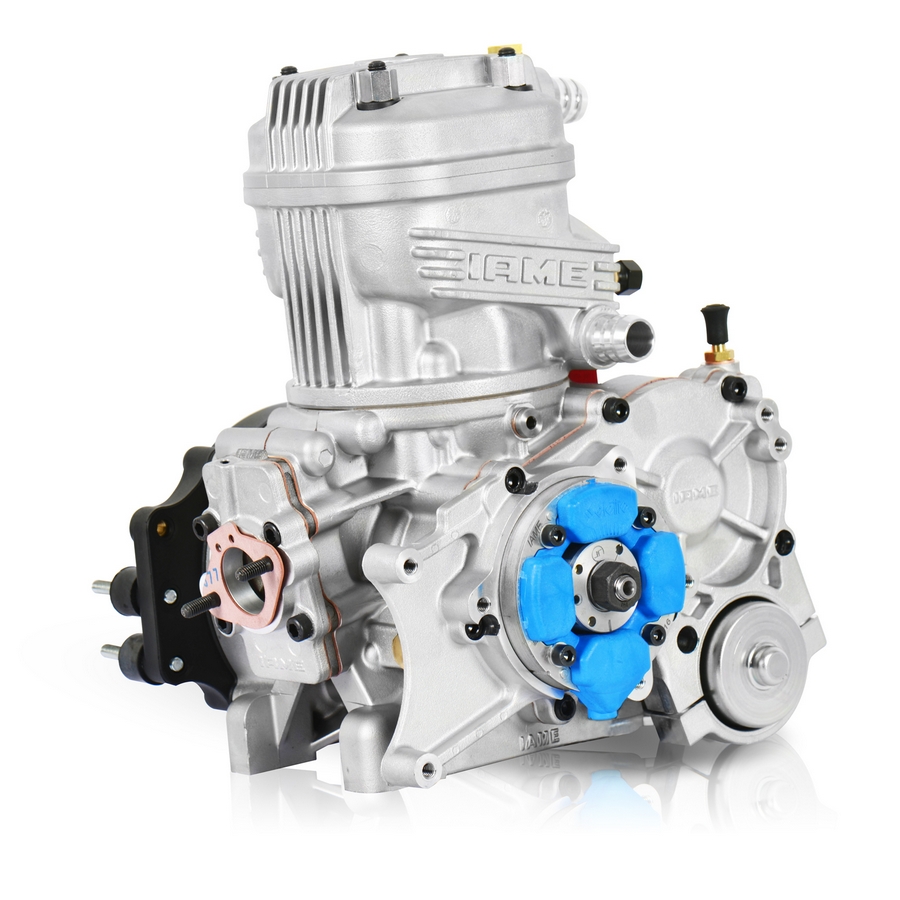

IAME X30 Junior Kart Engine 008

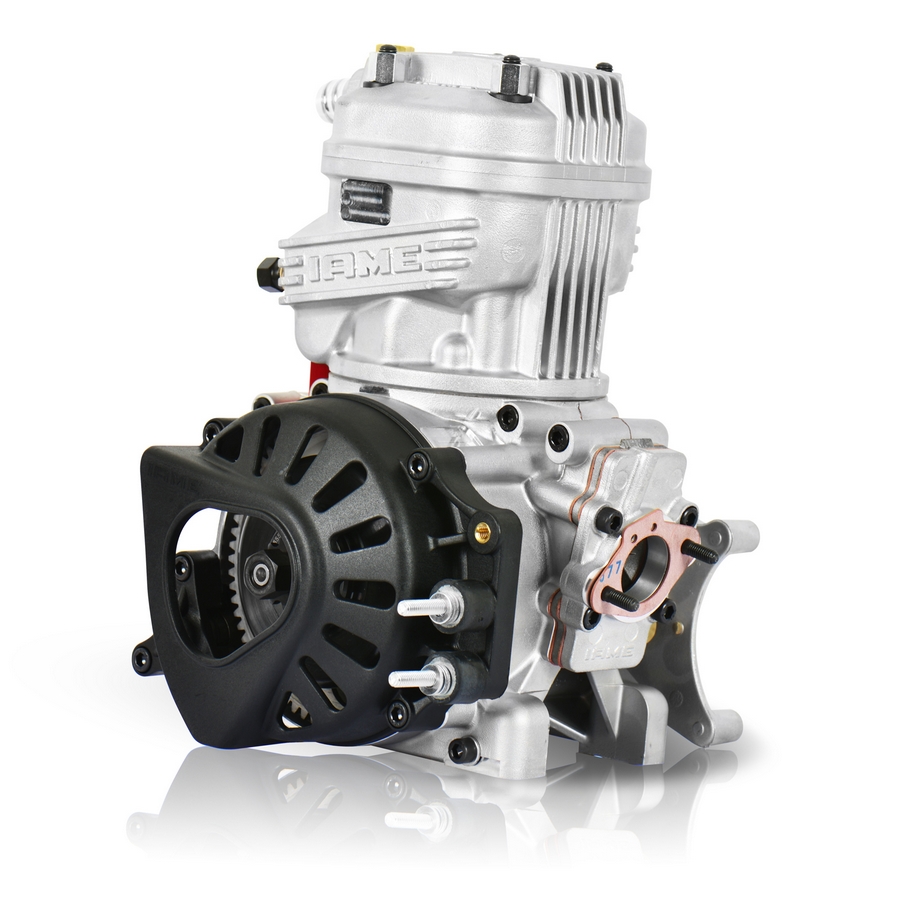

IAME X30 Junior Kart Engine 009
IAME X30 Junior Kart Engine 010

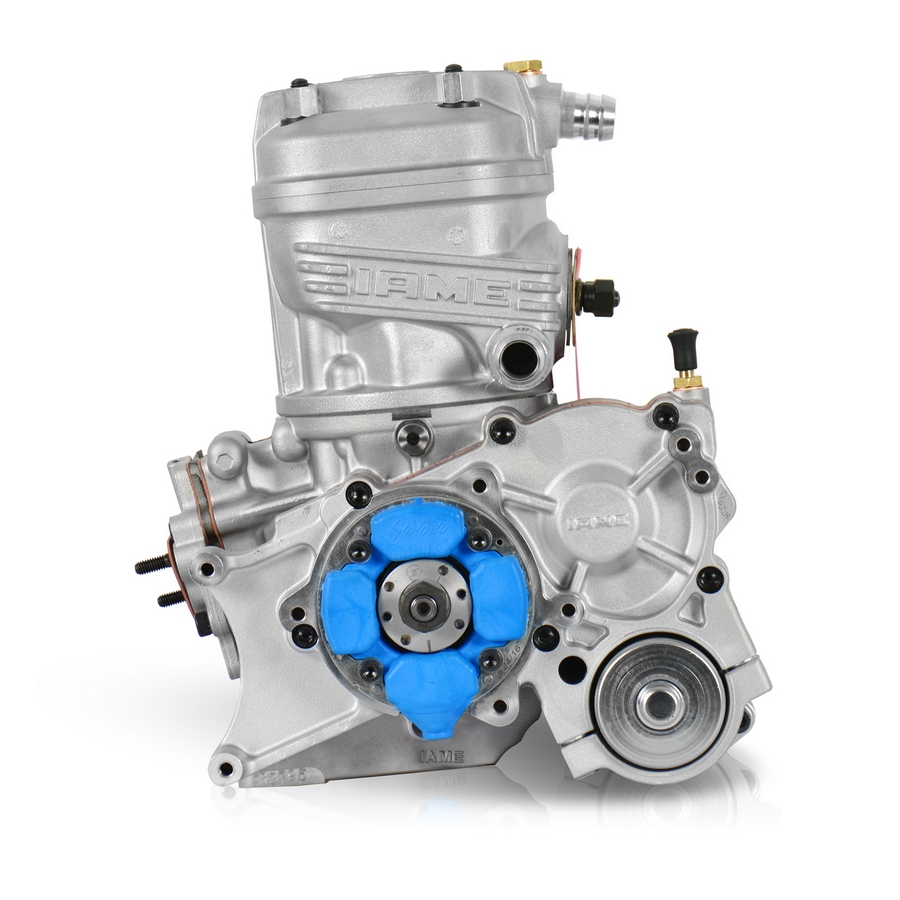

IAME X30 Junior Kart Engine 011

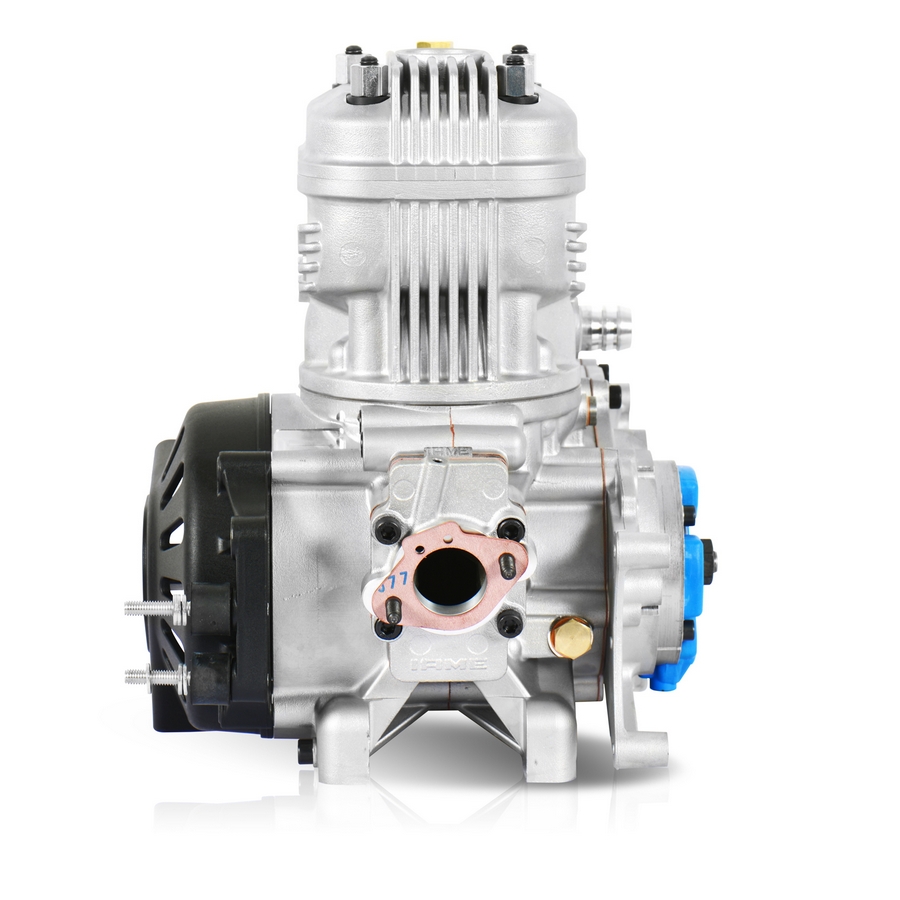

IAME X30 Junior Kart Engine 012

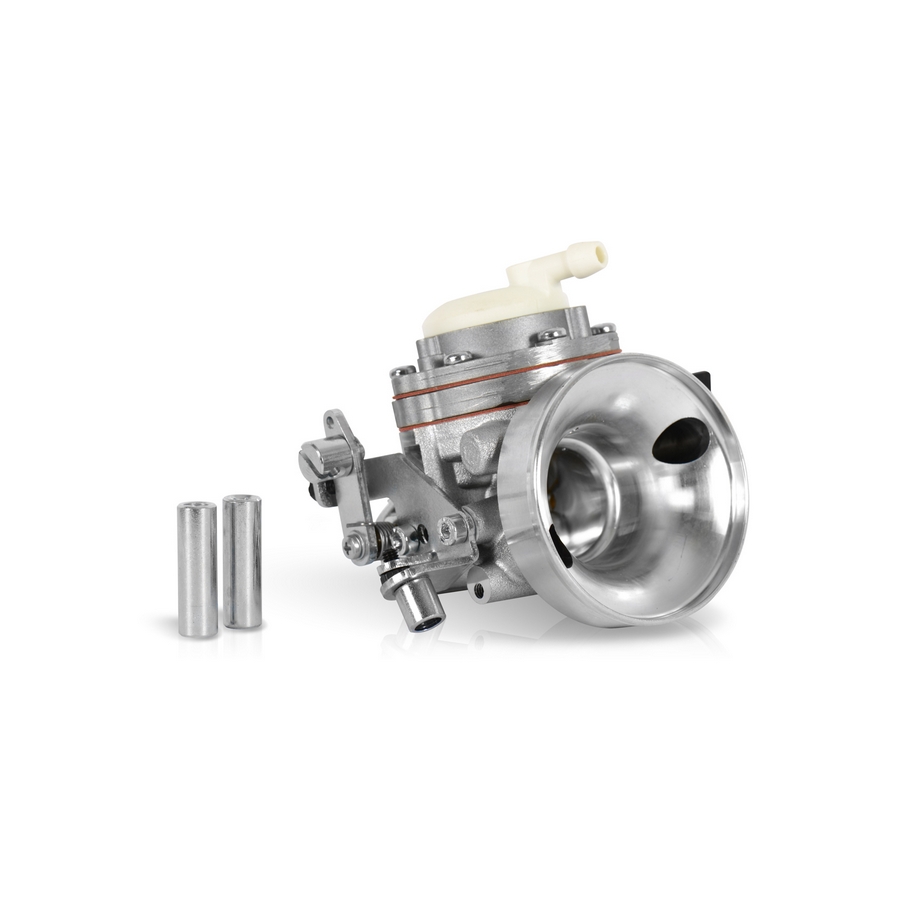

IAME X30 Junior Kart Engine 003

Technical Specification

Model
X30 125cc – Junior
Description
Single cylinder – 2 stroke
Class
X30 Junior
Category
125cc
Bore
Ø 54,00mm
Max Bore
Ø 54,28mm
Stroke
54,00mm
Displacement
123,67cc
Ports
3
Balancer Shaft
Present
Inlet System
Reed Valve
Lubrication
Oil Mixture
Ignition System
Digital
Transmission
Centrifugal Dry Clutch
Cooling System
Water
Starter
Electric Start
Carburettor
Tillotson HW-27A
Max Power
21 Hp
Max Torque
11 Nm
Max RPM Limit
16,000 RPM
