X30 Mini - Water Swift Engine

X30 Mini Engine

Designed for drivers aged from 8 to 12 years old the X30 Mini engine provides stable performance and reliability.

The X30 Water Swift 60cc engine adopts a traditional axle-driven water pump. The proven architecture of the IAME Mini Swift engines coupled with water-cooling guarantees stable performance and reliability in the hot UAE enviroment.

X30 Mini Engine Gallery

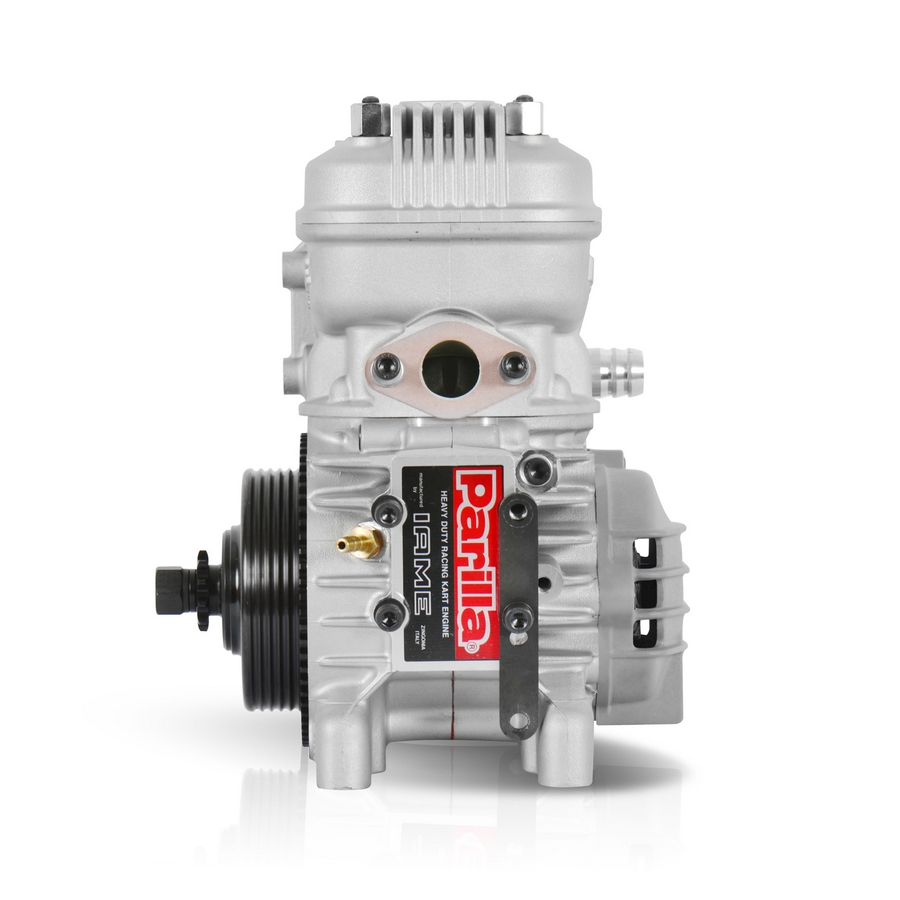

IAME X30 Water Swift Cadet Kart Engine 004

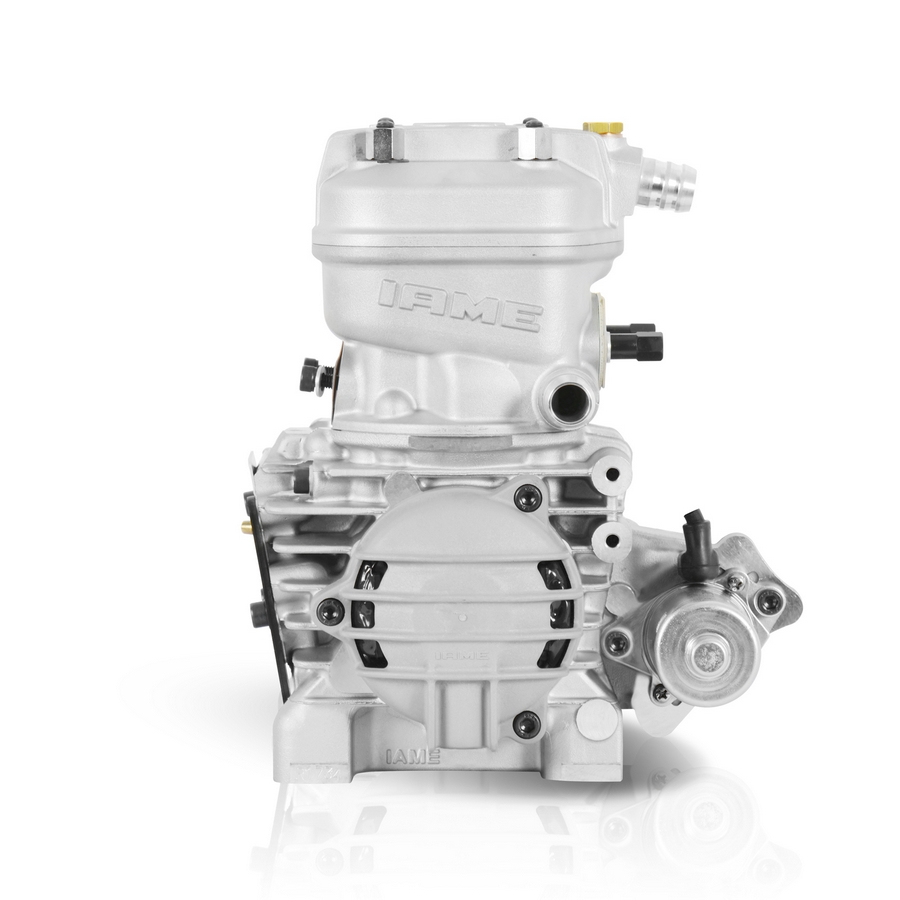

IAME X30 Water Swift Cadet Kart Engine 005

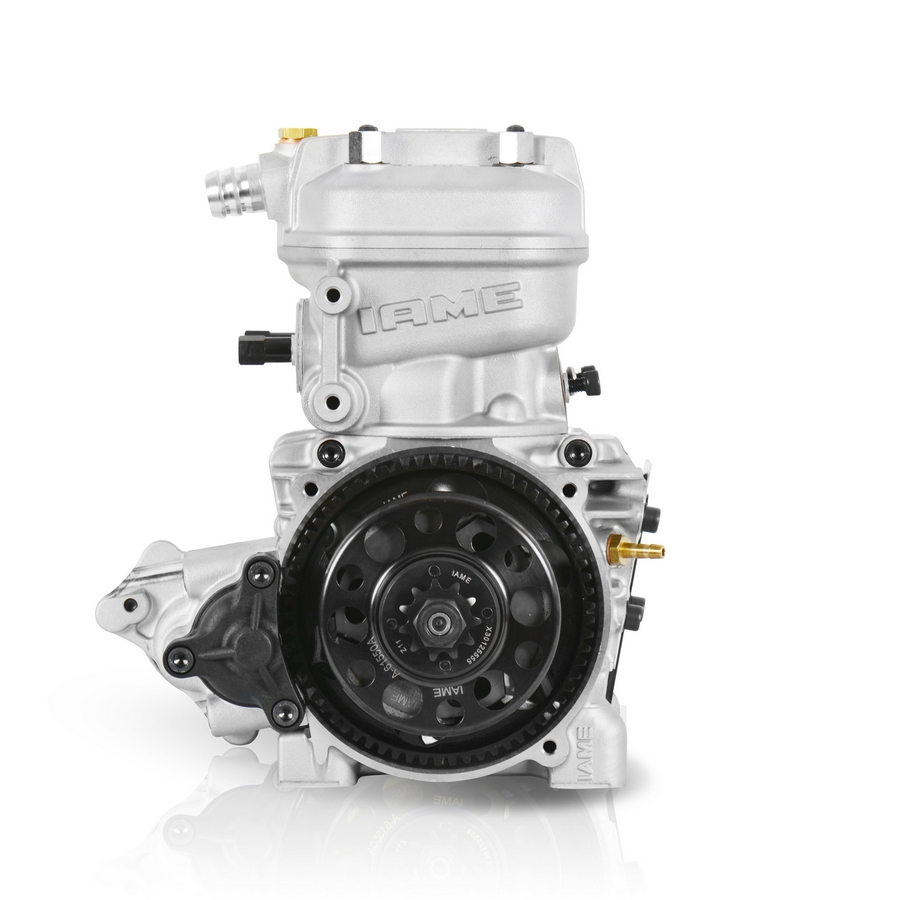

IAME X30 Water Swift Cadet Kart Engine 006

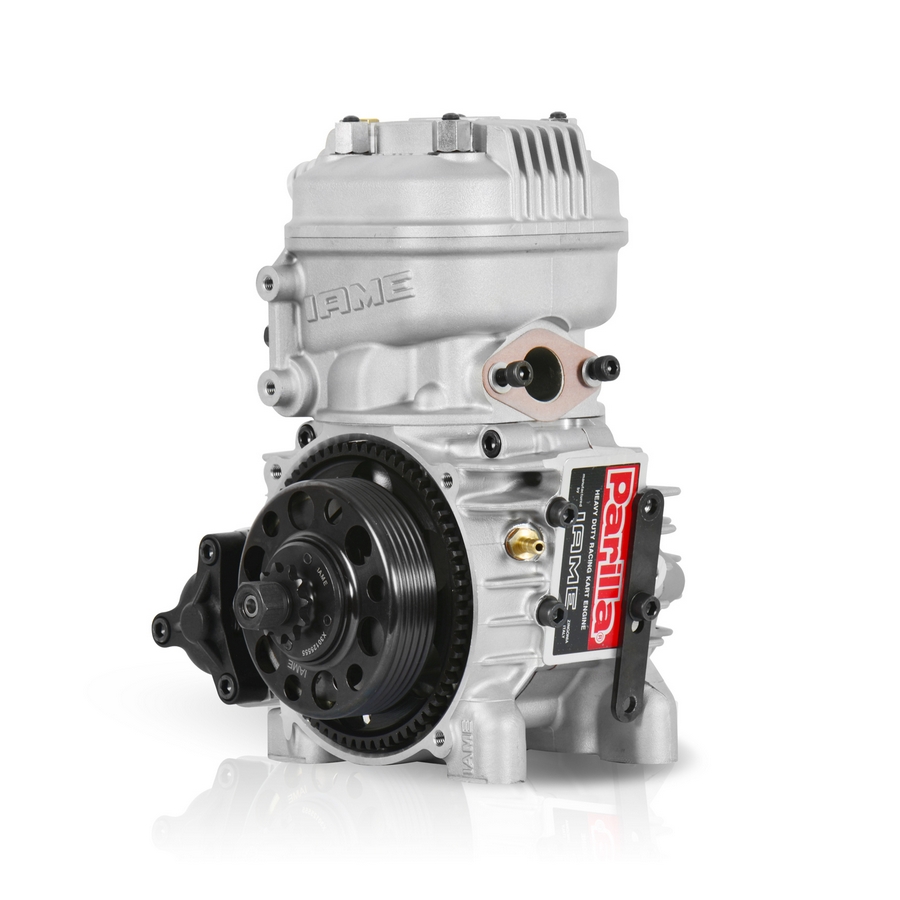

IAME X30 Water Swift Cadet Kart Engine 007

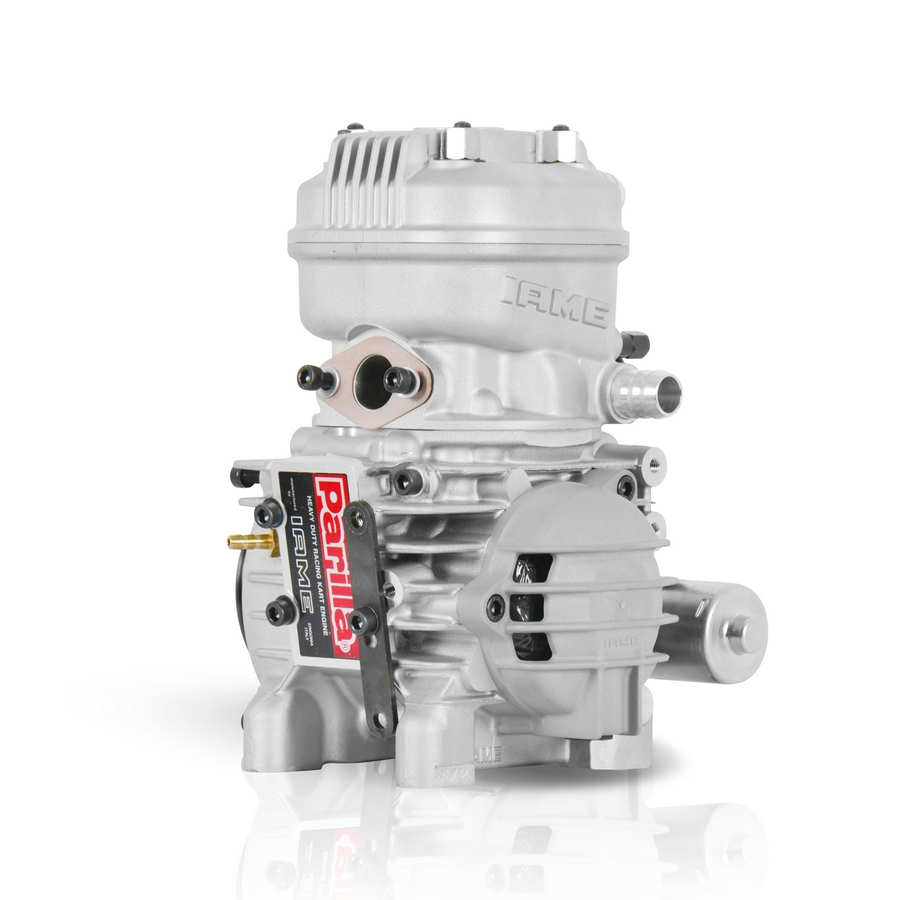

IAME X30 Water Swift Cadet Kart Engine 008

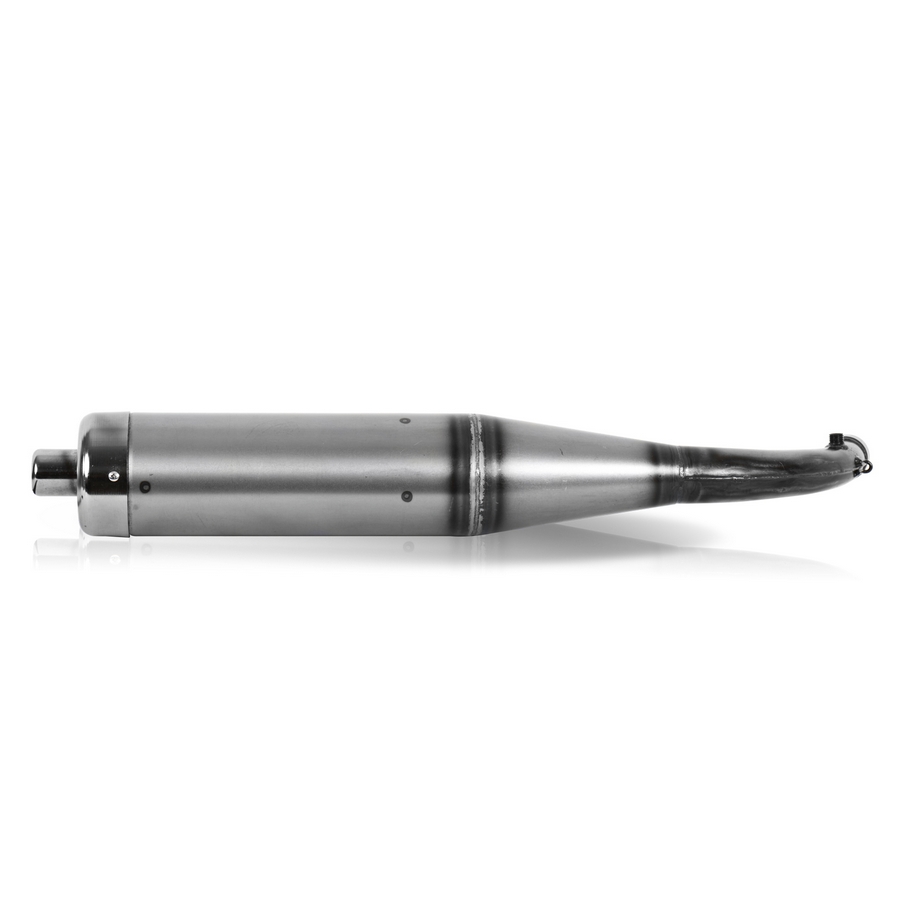

IAME X30 Water Swift Cadet Kart Engine Exhaust

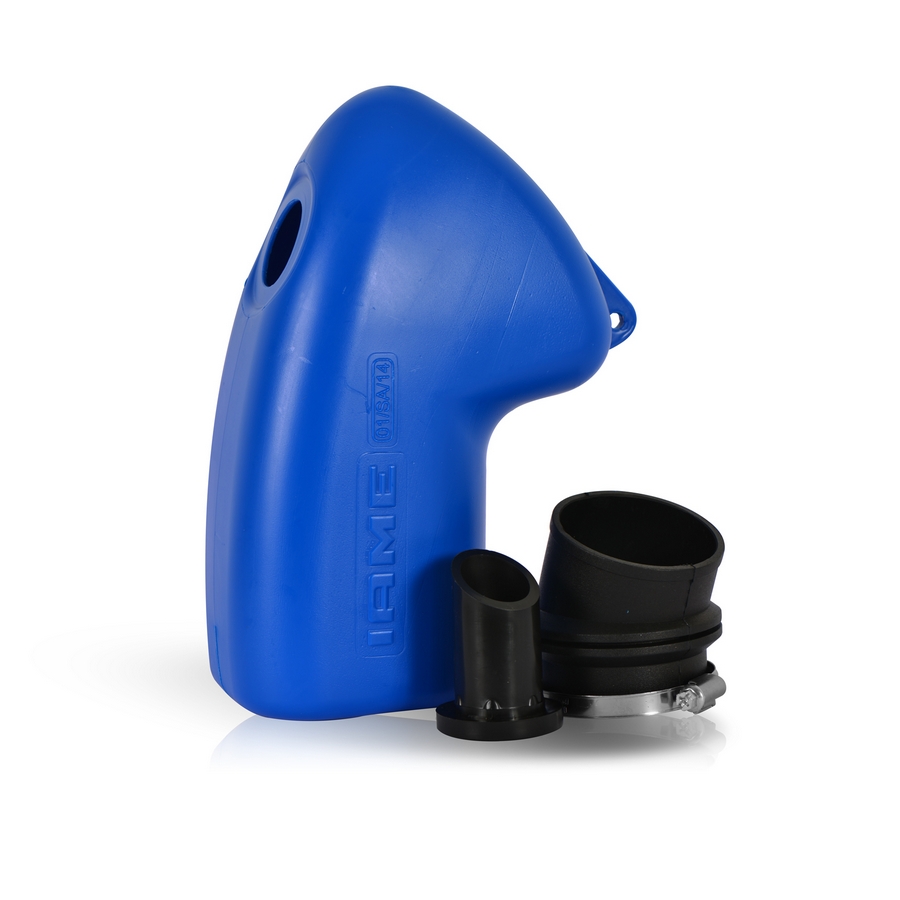

IAME X30 Water Swift Cadet Kart Engine Airbox

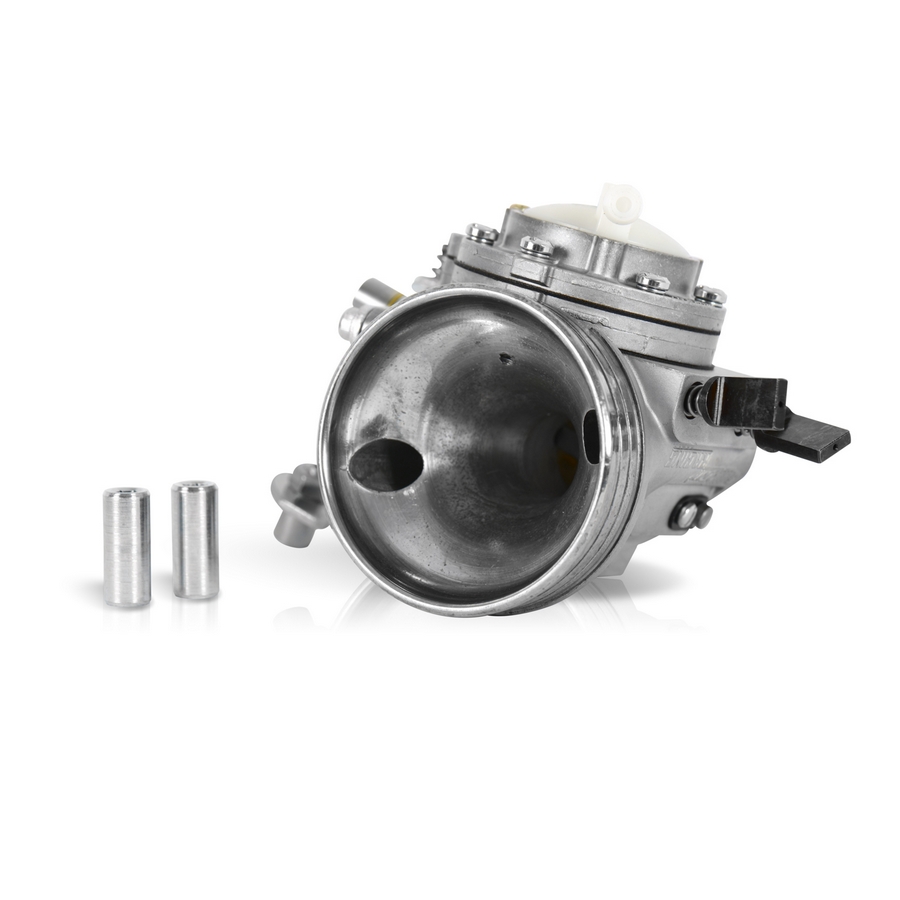

IAME X30 Water Swift Cadet Kart Engine Carb

Technical Specification

Model
X30 Water Swift 60cc
Description
Single cylinder – 2 stroke
Class
X30 Mini
Category
60cc
Bore
Ø 41,81mm
Max Bore
Ø 42,10mm
Stroke
43,00mm
Displacement
 59,00cc
Ports
2
Balancer Shaft
No
Inlet System
Piston Port
Lubrication
Oil Mixture
Ignition System
Electronic/Analogic
Transmission
Centrifugal Dry Clutch
Cooling System
Water
Starter
Electric Start
Carburattor
Tillotson HW-31A
Max Power
10 Hp
Max Torque
7 Nm
Max RPM Limit
No limiter

Downloads

X30 Mini Data Sheet
X30 Mini Technical Form
