IAME M1 Bambino Engine

IAME M1 Bambino Engine

The M1 Bambino Engine is designed for our youngest drivers, aged from 5 years onwards.

This small and compact 60cc power unit is designed to introduce the very youngest drivers to Karting and to make life as easy as possible to Dads and Mechanics.

The M1 requires a very easy installation as all accessories are fixed on the engine block. The engine needs very low maintenence and basic service skills. It is provided with an easy and effective pull start system and a Tillotson diaphragm carburetor. The exhaust system stands with the engine and doesn't require the installation on the chassis. The simple 1.5l fuel tank completes the engine package.

The M1 can be installed on 860/950mm wheelbase chassis. Safety is guaranteed by the cylinder/cylinder head and exhaust heat covers and a practical ON/OFF switch is located on the right side of the engine providing easy and immediate access to operators.

The M1 is the power unit for the Drivers of the future and provides the perfect choice for karters wishing to take the first step into Motorsport.

IAME M1 Gallery

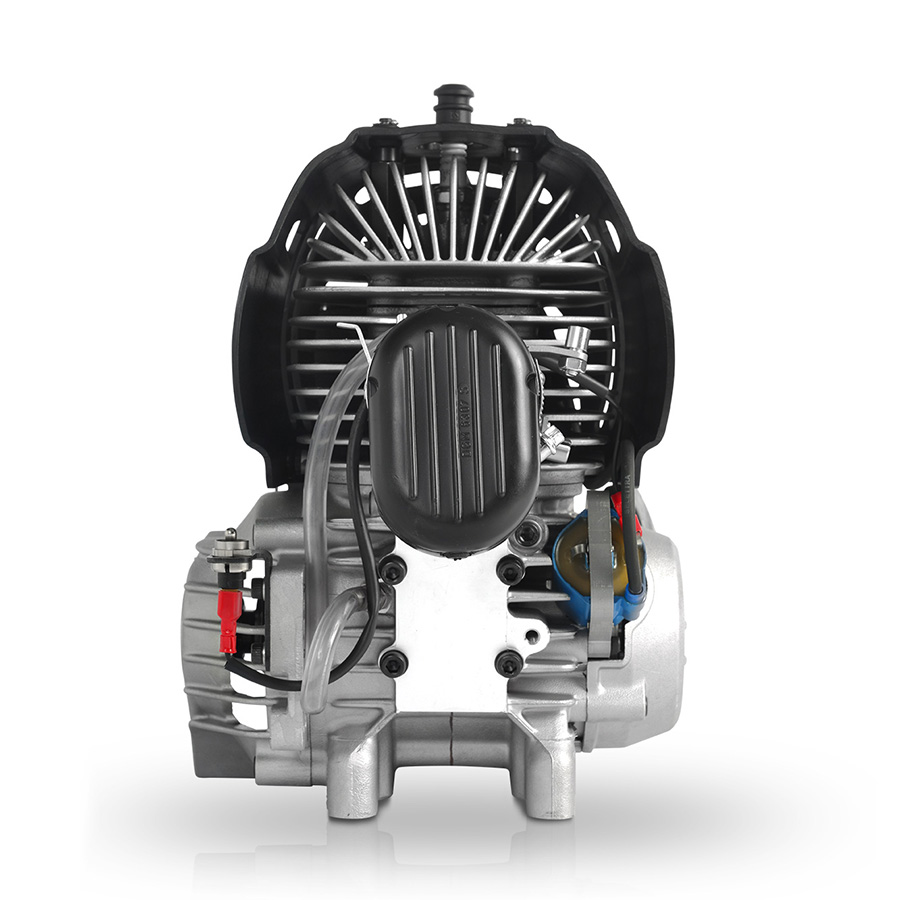

Iame Karting M1 60 Cc 001

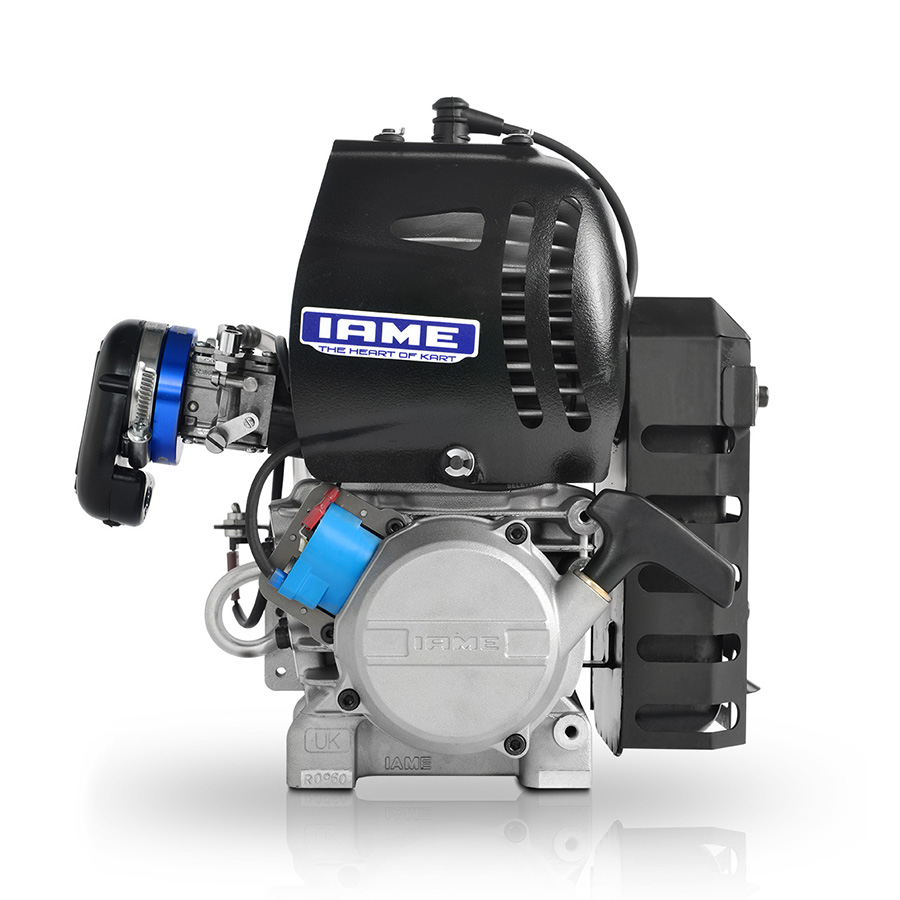

Iame Karting M1 60 Cc 002

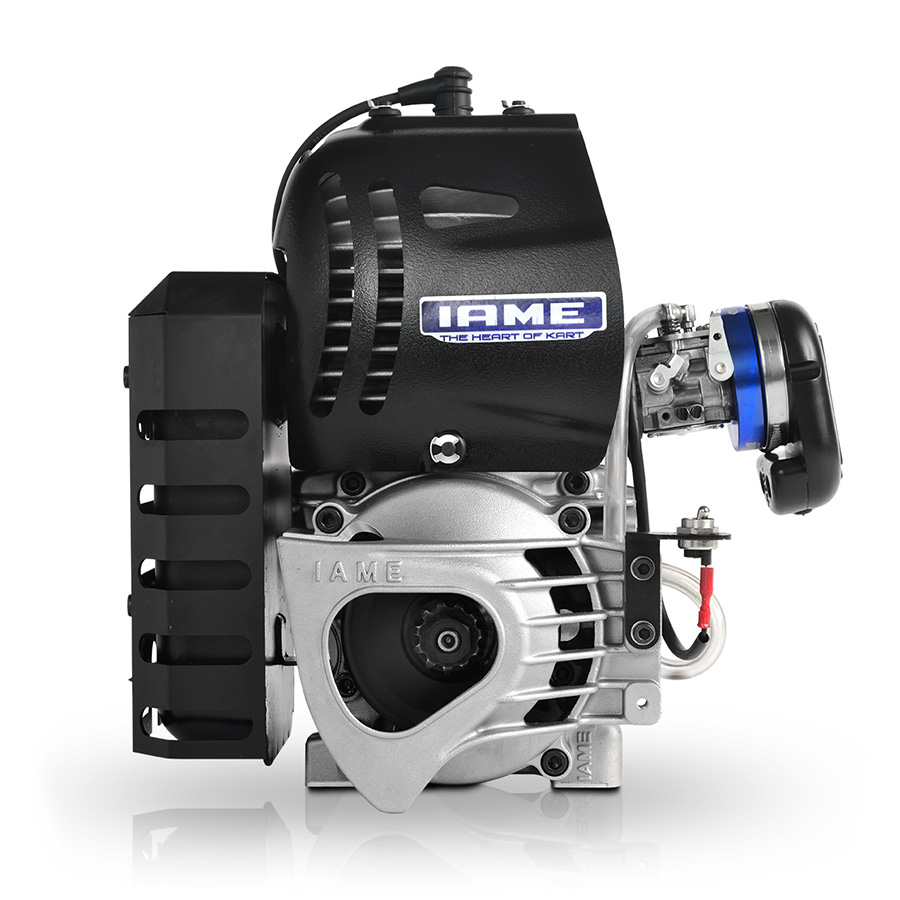

Iame Karting M1 60 Cc 003

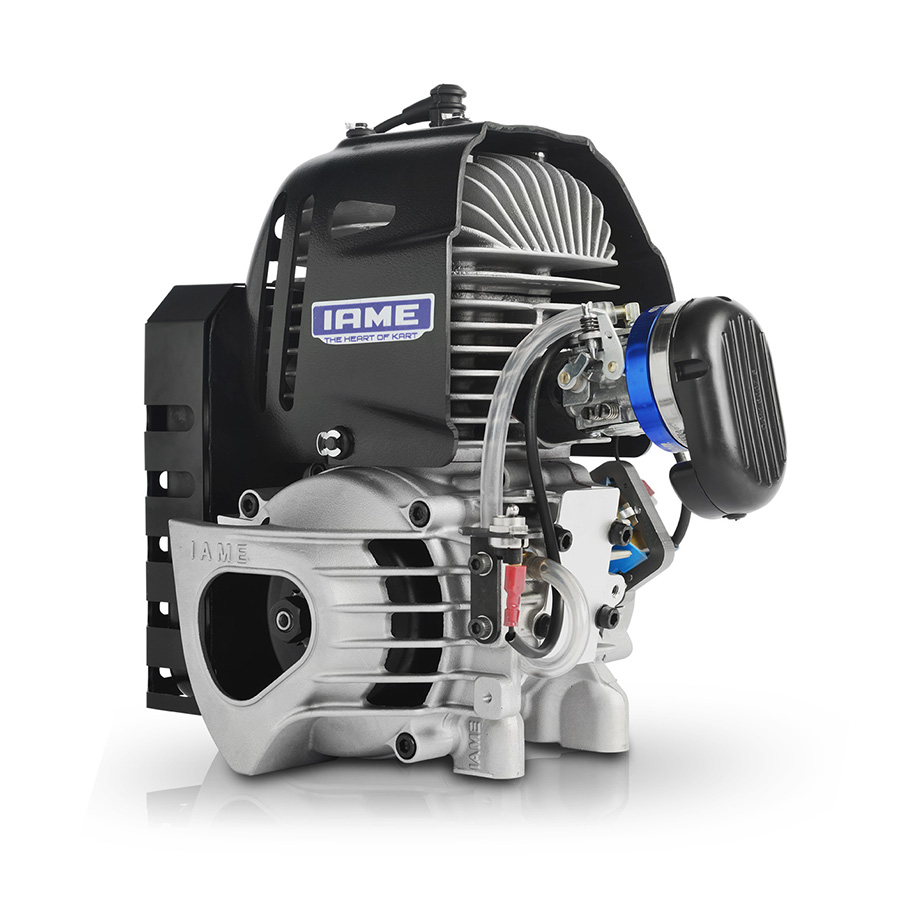

Iame Karting M1 60 Cc 004

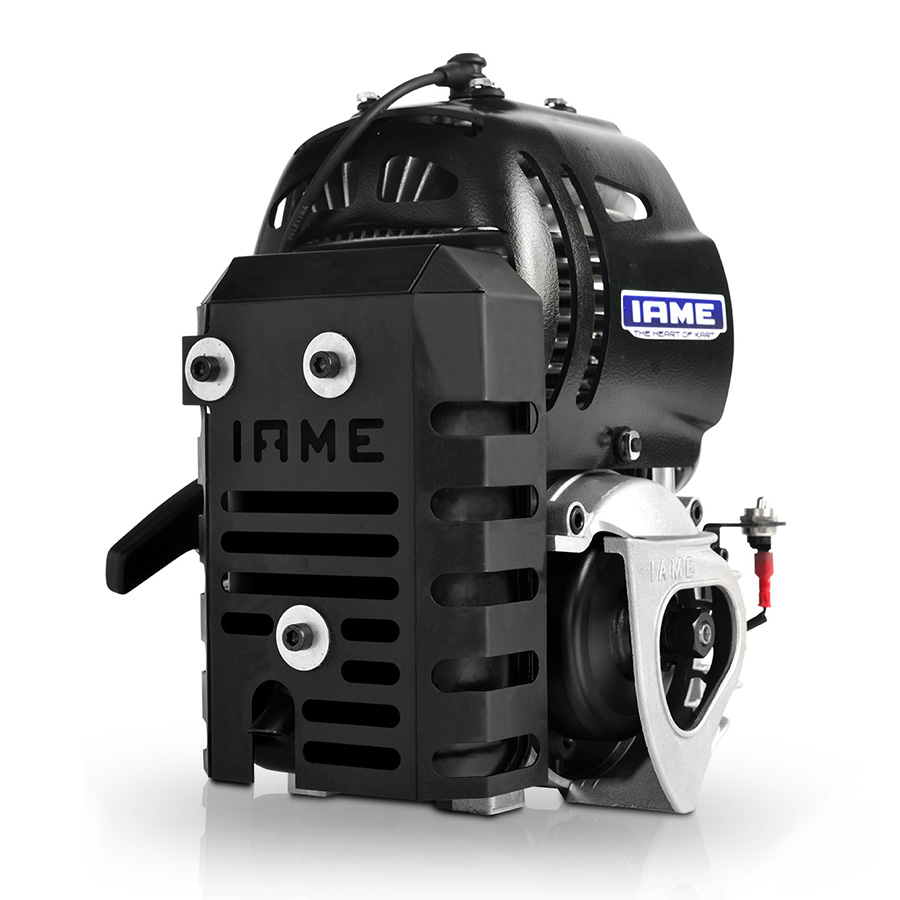

Iame Karting M1 60 Cc 005

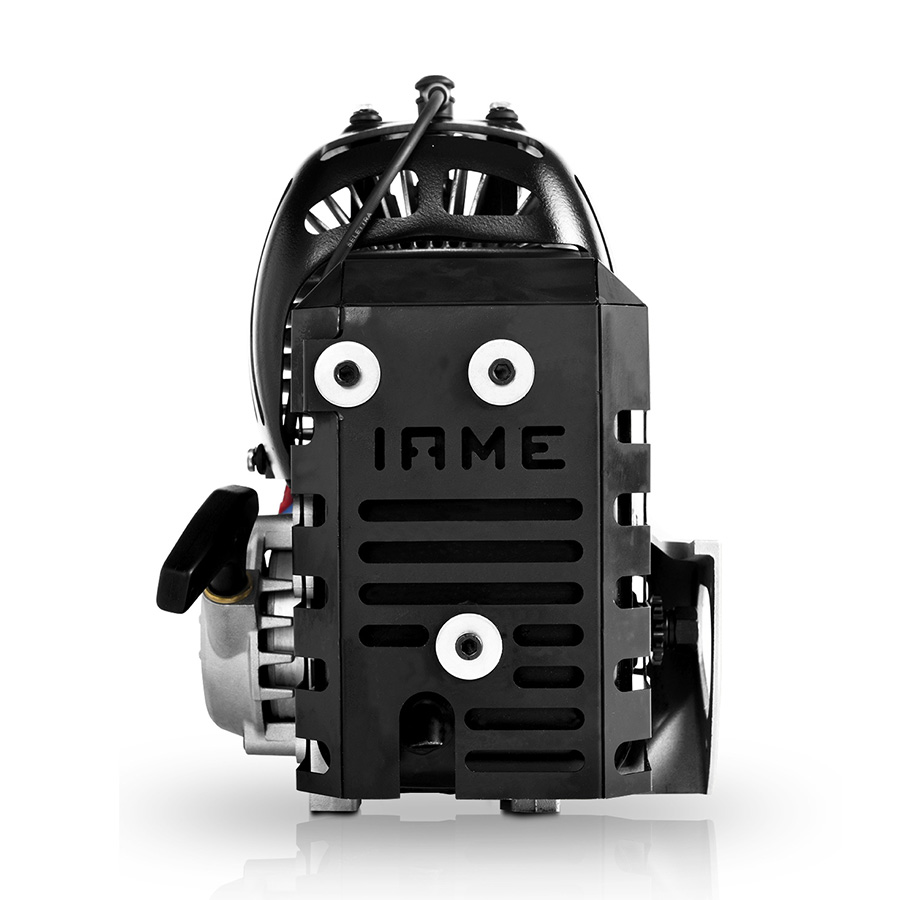

Iame Karting M1 60 Cc 006

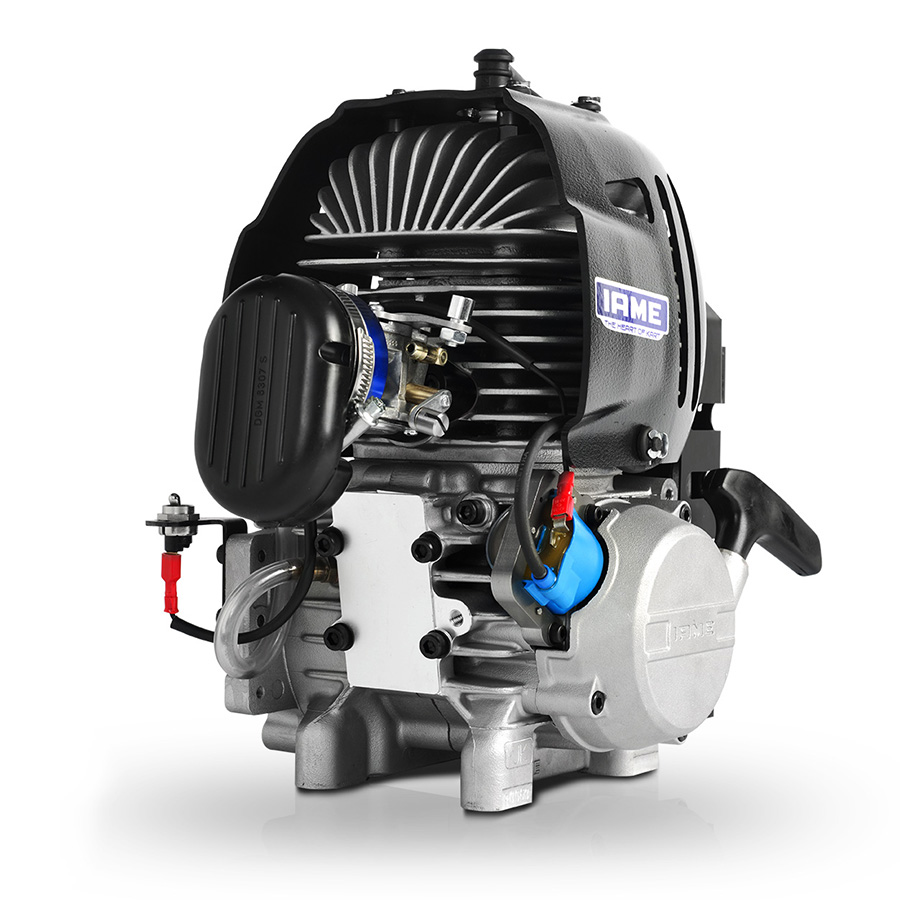

Iame Karting M1 60 Cc 007

Technical Specification

Model
M1
Description
Single cylinder – 2 stroke
Class
Bambino - 5 Years +
Category
60cc
Bore
Ø 41,80mm
Max Bore
Ø 42,00mm
Stroke
43,30mm
Displacement
59,42cc
Ports
2
Inlet System
Piston Port
Lubrication
Oil Mixture
Ignition System
Analogic
Transmission
Centrifugal Dry Clutch
Cooling System
Air
Starter
Pull Start
Carburettor

Tillotson HS325A

Max Power
2.0 Hp
Max Torque
2.5 Nm
